FlexRC

FlexRC Owl frame with intergated 3 inch propeller protection


Price : $ 76.28

Propeller size : None



Description

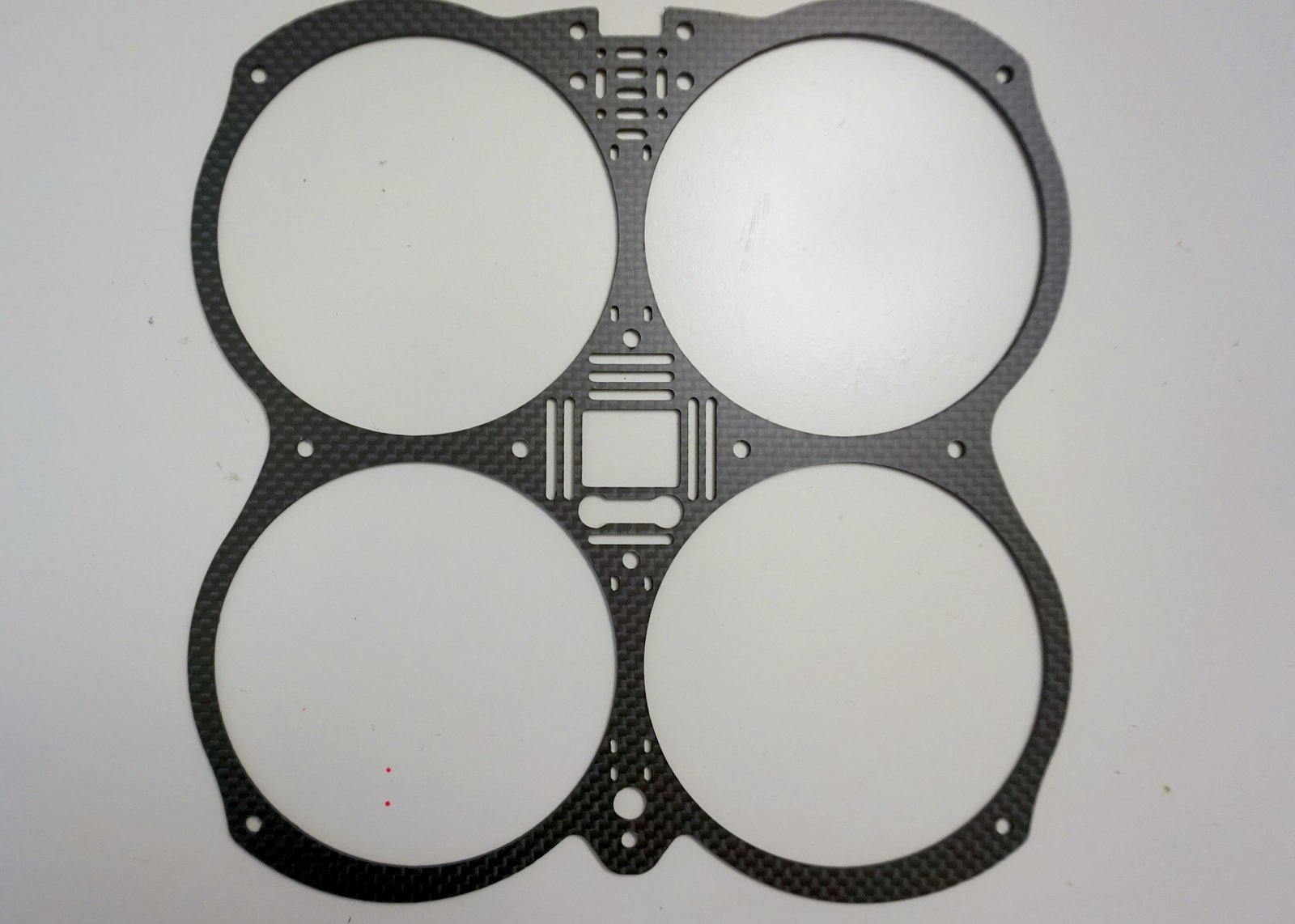

Owl is a 118mm brushless FPV quadcopter frame, designed to be safe proximity flier with support of wide variety of equipment and great mounting options.

It can also be purchased in FlexRC hobby store

SPECIFICATIONS


- 2mm 3K carbon fiber base motors holding plate
- 1.5mm 3K carbon fiber top plate
- 118mm motor to motor distance
- Weight of two plates: 55g
- Approximately 192g AUW (built using the recommend parts below) with 610mah 3S battery


FEATURES

- Integrated propeller and equipment protection
- Ability to mount motors facing up or down
- Ability to use wide variety of motors like 1105, 1306, 1407
- Ability to use virtually any VTX and to mount it to top or bottom plate
- Ability to mount battery on top or bottom
- Many mounting holes which help to keep all wires together for the clean and beautiful build
- Mounting holes for popular flight controllers like Naze32, CC3D and other boards that use 30.5mm distance between holes



VIDEOS






RECOMMENDED PARTS #1

This is my favorite configuration at this point.

- RCX 1105 4000kv motors installed on the top plate facing down
- DYS XM10a ESCs (or LittleBee 20a ESCs if you want to fly on 4S with GoPro)
- Genuine RotorX RX3020 props
- Flight controller of your choice
- 450mah to 610mah 3S battery or 4S battery in order to fly with GoPro


RECOMMENDED PARTS #2

- DYS 1306 4000kv
- LittleBee 20a ESCs
- Genuine RotorX RX3040T props
- Flight controller of your choice
- 450mah to 610mah 3S battery or 4S battery in order to fly with GoPro



More information about the frame can be found in RCGroups thread
