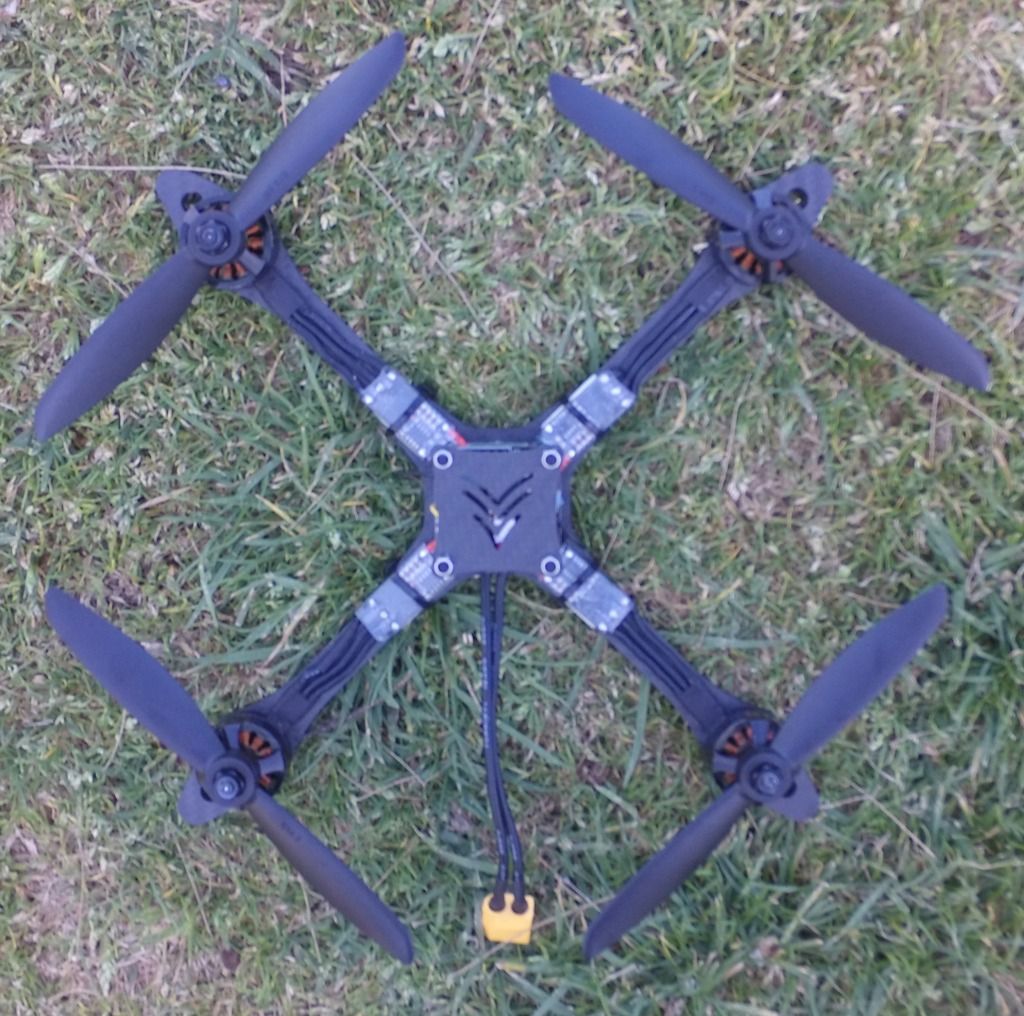

Raptor Quad





Raptor Quad is the fastest and most agilie quad from Raptor Quads

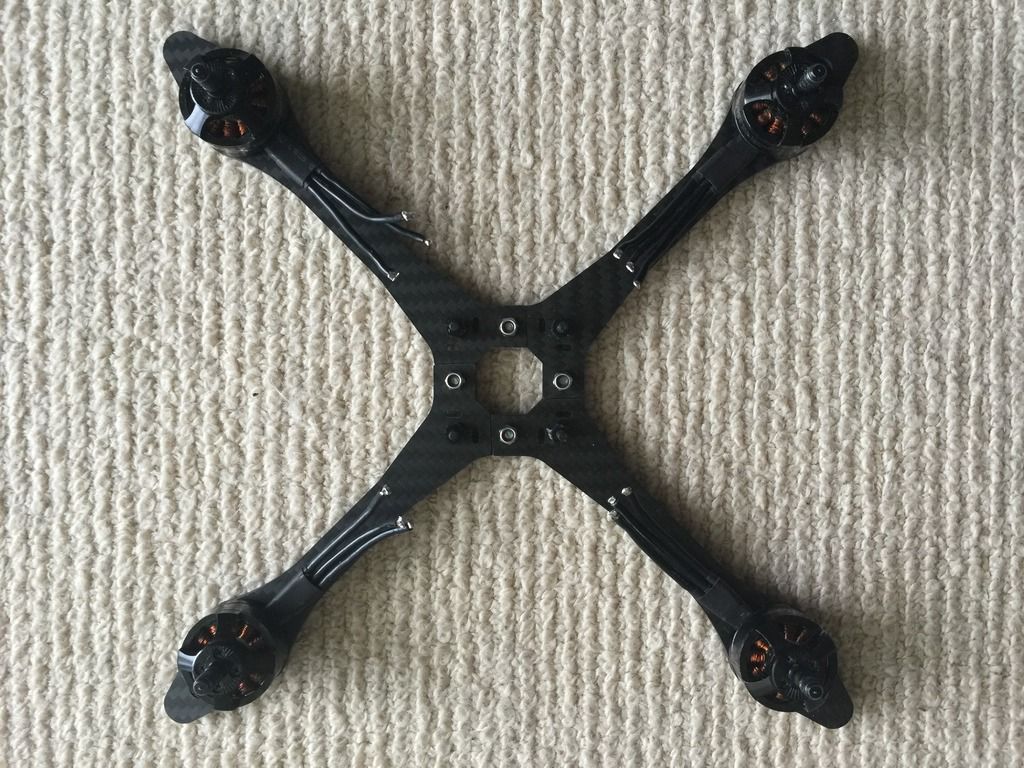

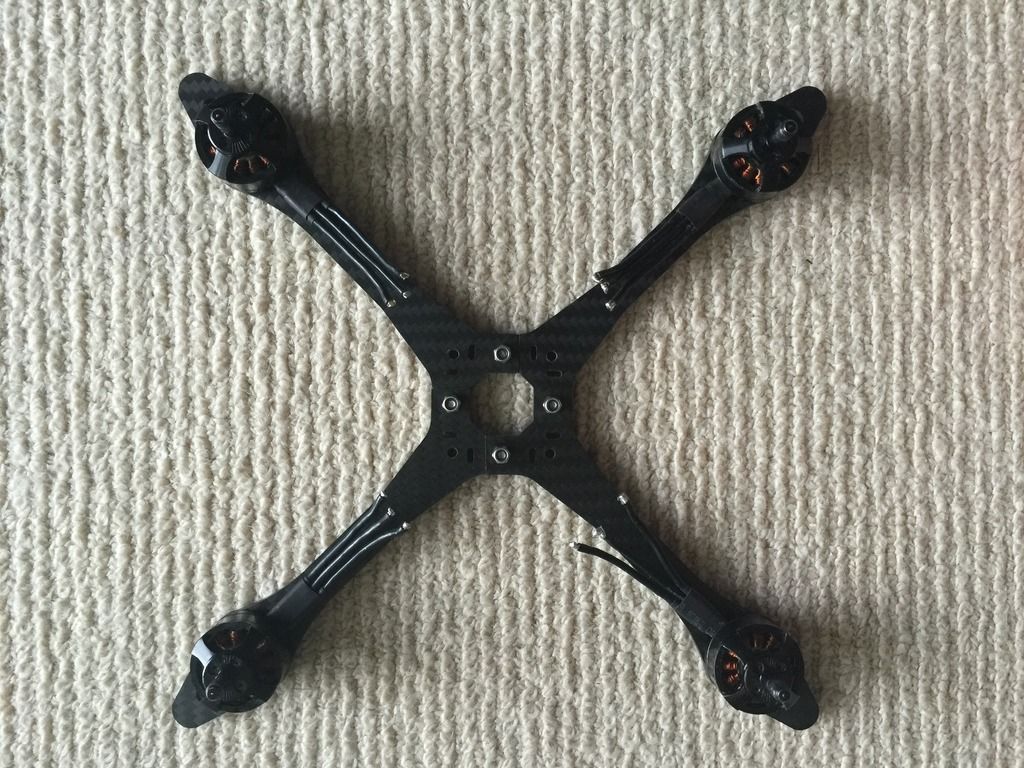

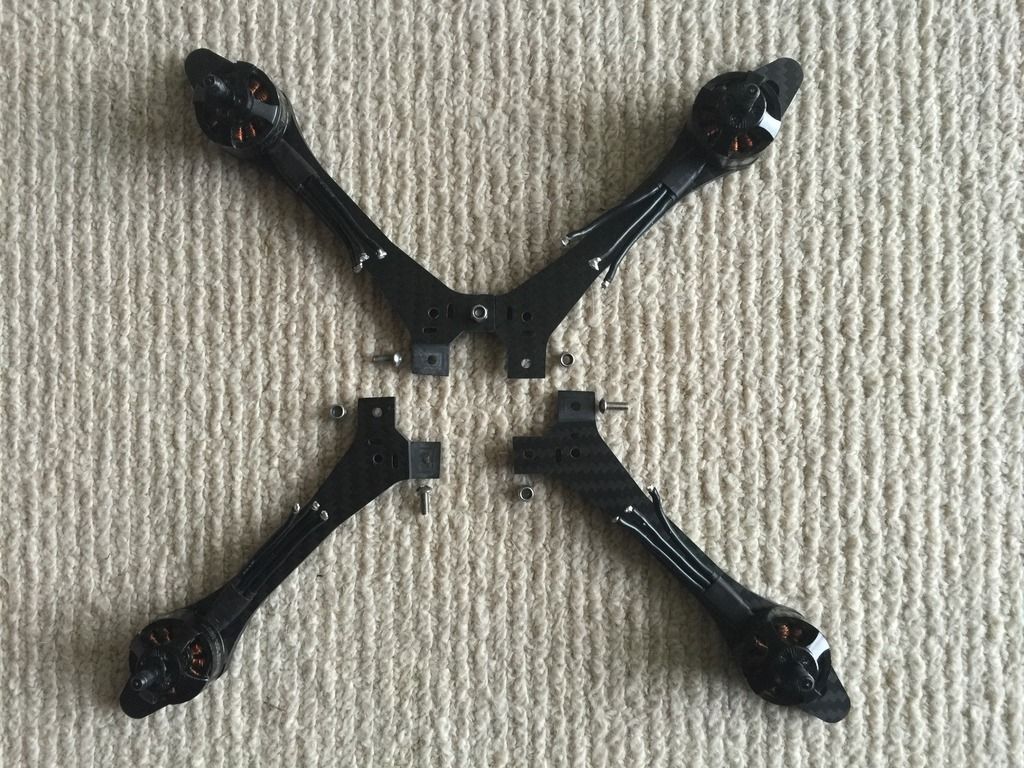

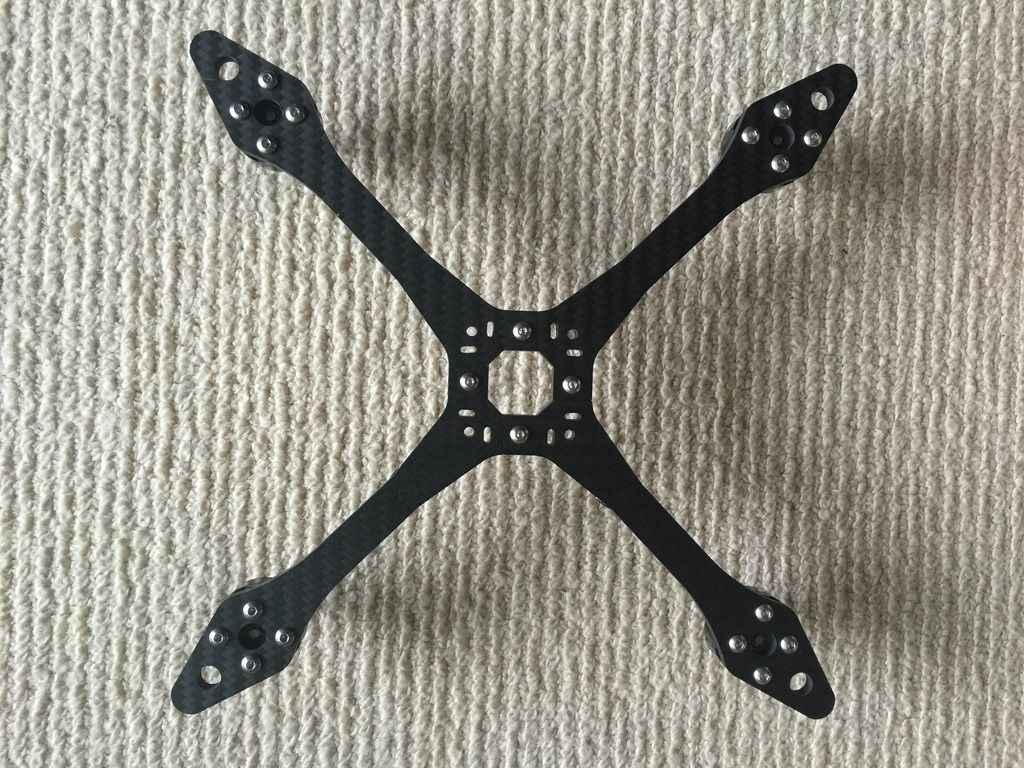

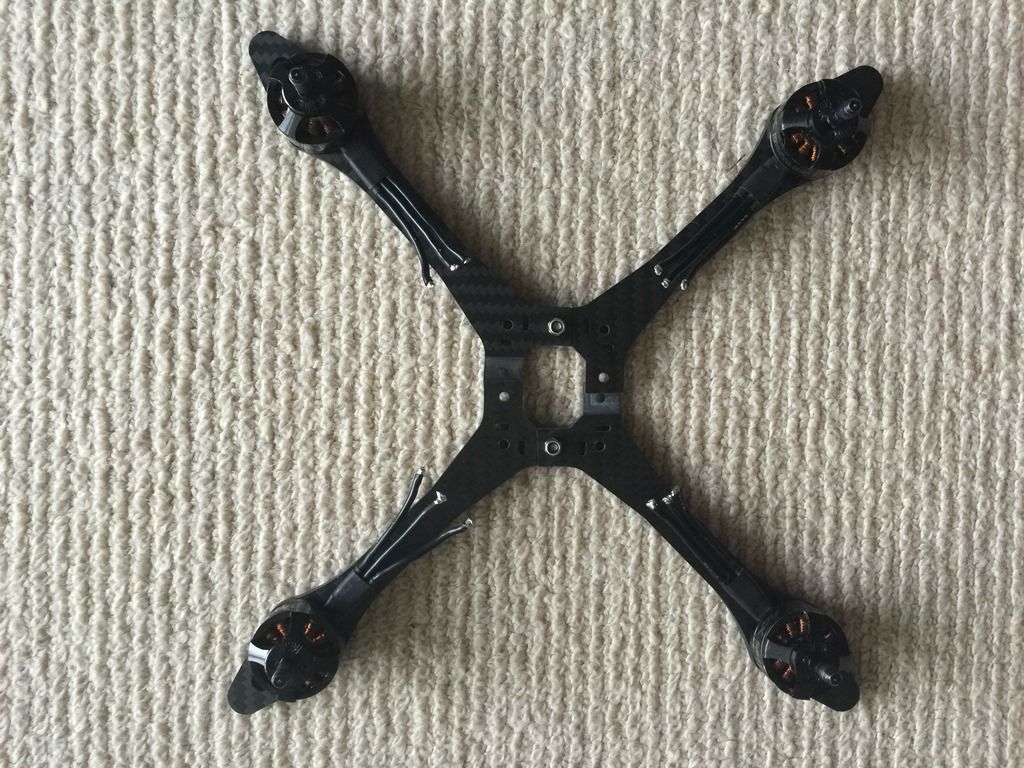

Frame 231 motor to motor

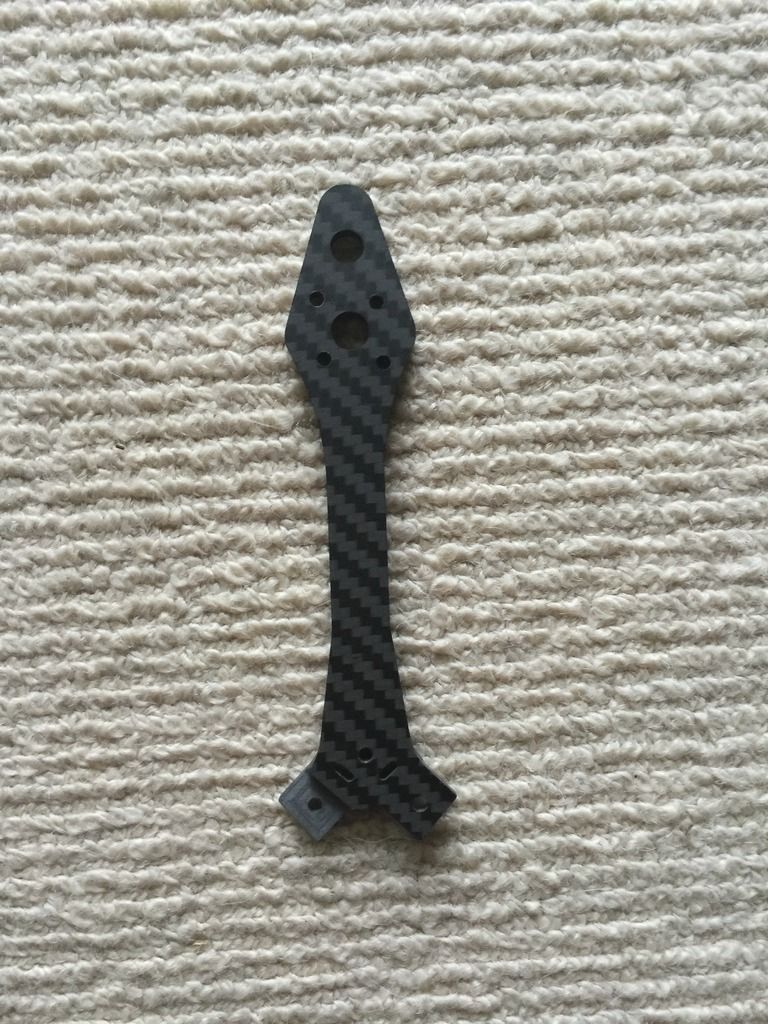

5mm arms and 2mm centre plates makes this a very strong and also light frame

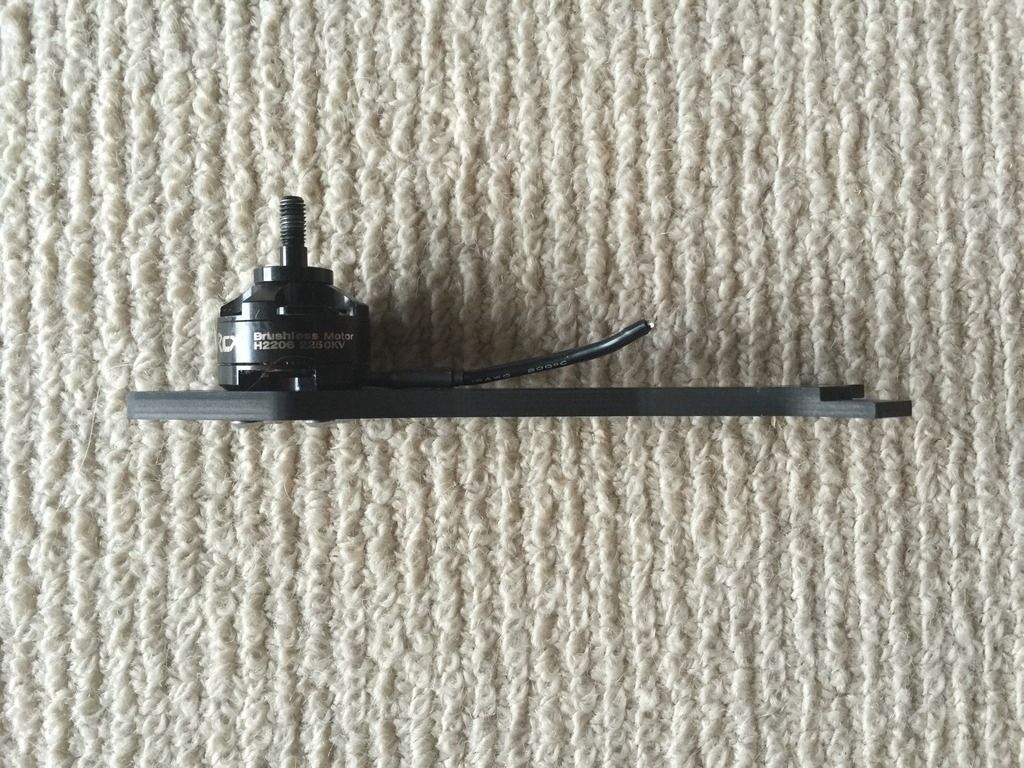

Standard 19 x 16 mounting holes for motors

Desgined for 6" props

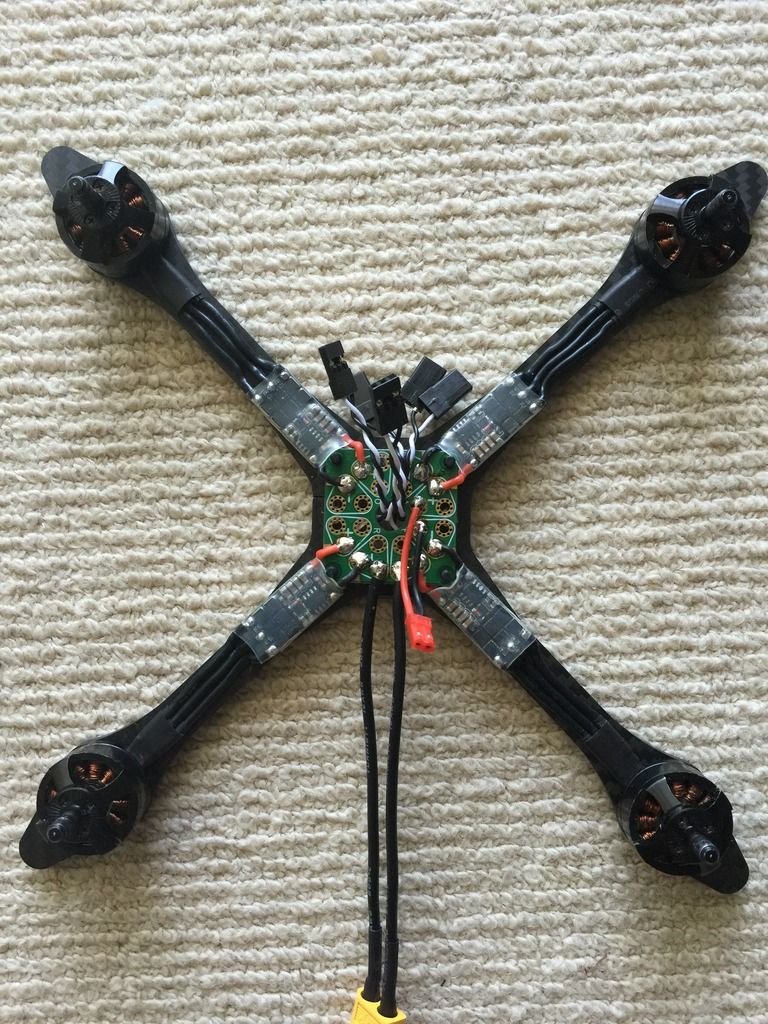

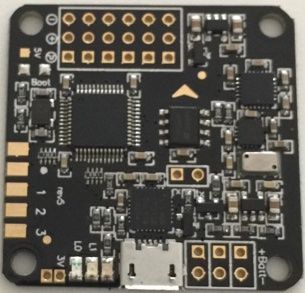

Mullet / Kojak Flight Controller runnning CleanFlight

RCX FVT Little Bee 20amp esc's with BlHeli 14.1 with Oneshot and Damped light active

Recomeneded RCX 2206 2250KV motors

Battery sizes 3s 1300mah and 4s 1000mah

Total weight with 3s 1300mah battery is 380grams



Links to addadtional components neede to complete the build

Mullet Flight Controller : http://www.armattanquads.com/mullet-acro-flight-controller/

RCX 20A (FVT Little Bee) BLHeli ESC + H2206 Motor Combo (4*ESC & 4*Motor) Choose 2250KV : http://www.myrcmart.com/rcx-20a-fvt-little-bee-blheli-esc-h2206-motor-combo-4esc-4motor-p-9052.html

RCX 20A (FVT Little Bee) BlHeli ESC : http://www.myrcmart.com/rcx-20a-fvt-little-bee-mini-blheli-multirotor-esc-p-9047.html

You will need the USB link to activate Damped light via BlHeli

RCX USBLink Programmer : http://www.myrcmart.com/rcx-usblink-programmer-p-8816.html

Kiss 18 amp esc's : http://flyduino.net/KISS-ESC-2-4S-18A-v11_1

BlHeli suite : https://www.mediafire.com/folder/dx6kfaasyo24l/BLHeliSuite
