Sparrow roll cage Frame
Item List
-

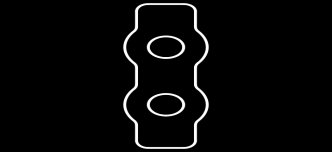

front and read spacer 4mm
Quantity :2
-

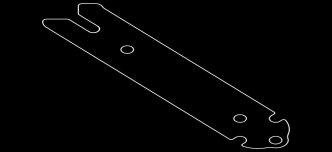

4inch Arm widow
Quantity :4
-
1
Quantity :1
-

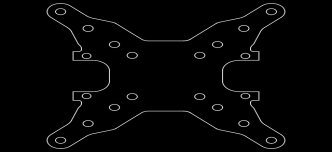

V2 20mm 2mm mid base
Quantity :1
-

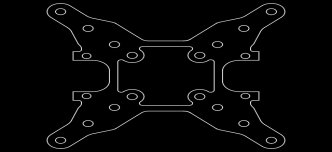

V3 20mm 2mm mid base
Quantity :1
-

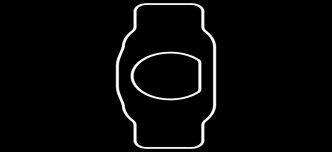

Rear ant mount
Quantity :1
-
5mm M2 Steel Cap Head Bolt Black Anodized (per piece)
Quantity :4
-
M3 Nylon Insert Nut Black Anodized (Nylock)
Quantity :12
-
6mm M3 Steel Button Head Bolt Black Anodized
Quantity :6
-
14mm M3 Steel Button Head Bolt Black Anodized
Quantity :12
-
Quantity :3
Description
I LOVE THE SPARROW BUT JUST WANTED MORE... see below..
This Frame requires a GepRC Sparrow top frame
https://www.banggood.com/Grprc-GEP-MX3-Spare-Part-Aluminum-Frame-Left-and-Right-for-GEP-MX3-139mm-Frame-Kit-p-1216808.html?rmmds=myorder&cur_warehouse=CN
Copy and paste link
30.5 x 30.5 FC and Matek VTX
I have a 20 x 20mm design on the way
Then drill out the side holes with a 3mm drill bit to fit 15mm standoffs inbetween
NOTE: Ill also add my 3D printed arms once ive uploaded to thingiverse... Ive designed to house the ESC for protection and looks as the ESC i have LED lights on them an the Clear 3D filament ive use looks great when powered on.
this is the prefect sizes as a 4 INCH frame the 3 INCH just not my sytle of flying ive also design this in a 5 INCH arm to so easy to swap out if you want just undo nuts and screw out slide arm through 3D print so no need to un do wires at all! and slide in new arm...
SO TOUGH this thing is Wicked TUFF!!! crashed a heap of times now and loves the Punishment...
The middle piece before putting together Sand the Insde edges as this where the strap goes to prevent cutting
Additional Information
Ill upload a video if requiered for install but its pretty straight forward, Now go Punch holes in the sky!!
