Alligator FPV
Alligator5 Mk3 Frame carbon parts only
Price :
$
62.35
Propeller size :
5"
Item List
-
BackSpacer
Quantity :1
-
Cage
Quantity :2
-
Alligator_Top
Quantity :1
-
Alligator_Mid_ST
Quantity :1
-
Alligator_Bottom
Quantity :1
-
CageMount_v2_ST
Quantity :2
-
Wiggle r2
Quantity :1
-

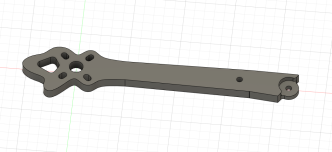

Alligator_Arm5x_v2
Quantity :4
-
Cage_O4_v1
Quantity :2
Description
IMPORTANT: Carbon Fiber Parts Only
TPU Parts: http://www.thingiverse.com/thing:7314068
Note: This version uses standard pressnuts (4.2mm hole) instead of armattan pressnuts (4.5mm hole) to make sourcing easier.
Hardware Required (Bill of Materials)
To assemble the complete frame, you will need to source the following hardware separately:
| tem | Specification / Type | Qty | Purpose |
|---|---|---|---|
| Standoffs | M3 x 20mm Aluminum | 8 | Frame height / Cage |
| Press Nuts | M3 Steel for 4.2mm hole diameter | 2 | Arms |
| Screws | M3 x 6mm Button Head of Flat Head Steel | 12 | Top Plate / Standoffs / Cage |
| Screws | M3 x 16mm Cap Head Steel | 4 | Main Arm Screws |
| Screws | M3 x 16mm Cap Head Steel | 2 | Secondary Arm Screws |
