QT-Flat25 (1.5mm) for 14mm wide camera Kit (Carbon Only)
Price :
$
35.46
Propeller size :
2.5"

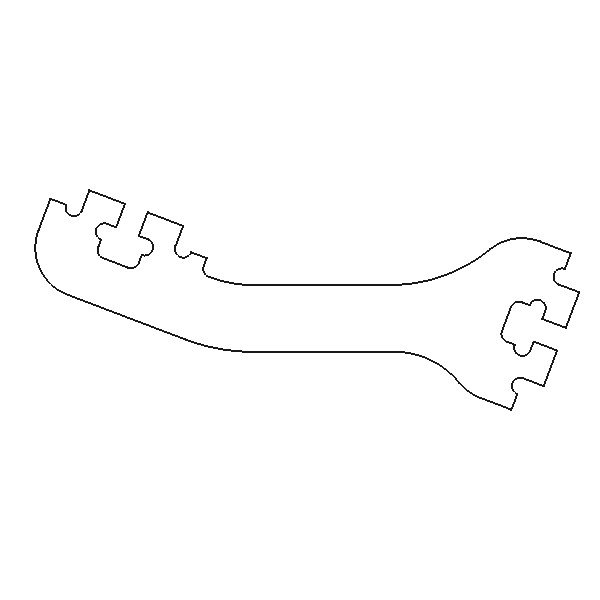

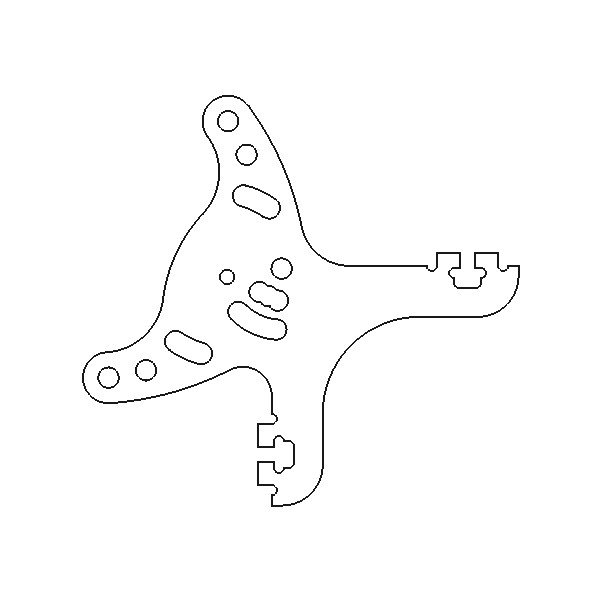

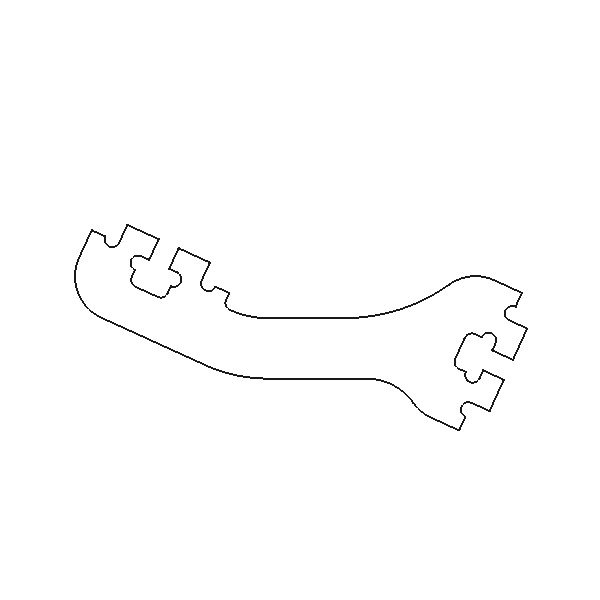

Item List
-

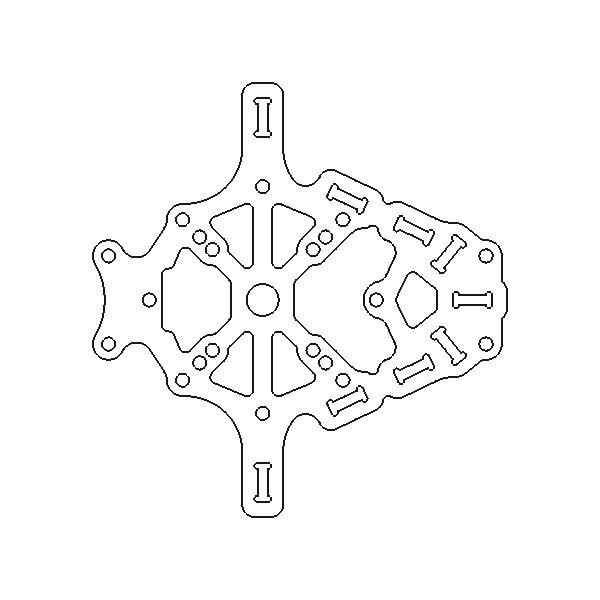

TTF25_868620B15_Bottom
Quantity :1
-

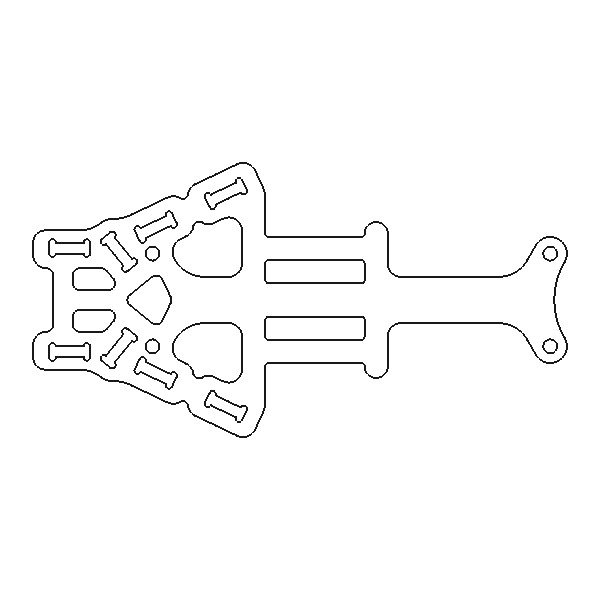

TTF25_868620B15_Top
Quantity :1
-
TTF25_868620B15_Brace-F
Quantity :1
-
TTF25_868620B15_Brace-RS
Quantity :3
-
TTF25_868620B15_Brace-MF
Quantity :2
-
TTF25_868620B15_Brace-MR
Quantity :2
-
TTF25_868620B15_Brace-MSF
Quantity :2
-
TTF25_868620B15_Brace-MSR
Quantity :2
-
TTF25_868620B15_Brace-SC
Quantity :2
-
TTF25_868620B15_Brace_RC
Quantity :1
-

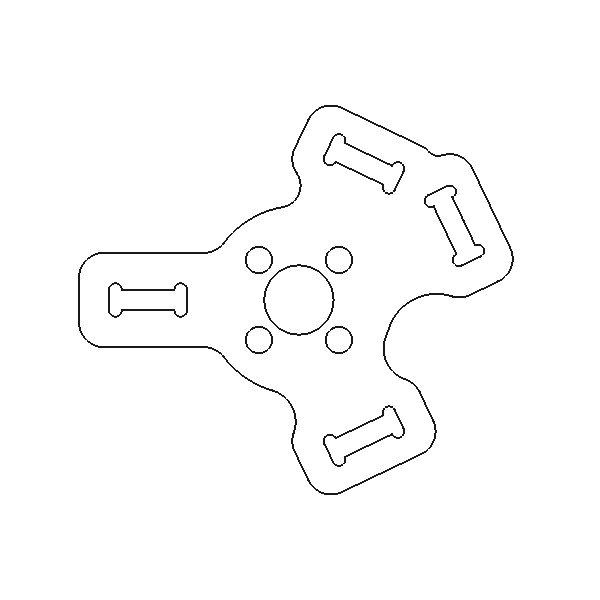

TTF25_868620B15_MM
Quantity :4
-
TTF25_868620B15_Side-14C5
Quantity :2
Description
This frame is a modified version of QT series. Two rear motor mounts have been rearranged to the same height as the front ones. As a result, the frame's appearance resembles an ordinary frame, but it still has good resistance against frame resonance.
- Wheelbase : 121.6mm (true-X)
- Thickness : 1.5mm (Please avoid collisions as much as possible.)
- Motor mount : 9x2mm, 4 holes; M2
- FC mount : 25.5x25.5mm, 20x20mm, 16x16mm, M2
- Stack height : 20mm including nuts (limited unlike the QT series)
- Compatible with whoop style USB connector
- Compatible camera width : 14mm (including O4 original mount)
- Built-in battery strap holder (can use up to 15mm width strap)
- Weight : Approx. 21.6g (Carbon only), 29g (w/ M1.4 and M2 hardware including four M2x20mm standoffs and two M2x14mm standoffs)
Required hardware
- M1.4x3.5mm screws and M1.4 nuts (width 2.5mm), Qty 40 pairs (The total weight of M1.4 hardware is less than 3.5g.)
- M2x20mm standoffs, Qty 4
Not required but desirable hardware for camera protection
- M2x14 standoffs for camera protection, Qty 1 or 2
Please note that this frame kit is not compatible with 3mm-wide M1.4 nuts. You can find 2.5mm-wide M1.4 nuts at Aliexpress stores such as
As for M1.4x3.5mm screws, there are two sizes for the head diameter, 2.5mm and 3mm. They can be both used for this frame, but the 3mm-head one seems better.
